Description

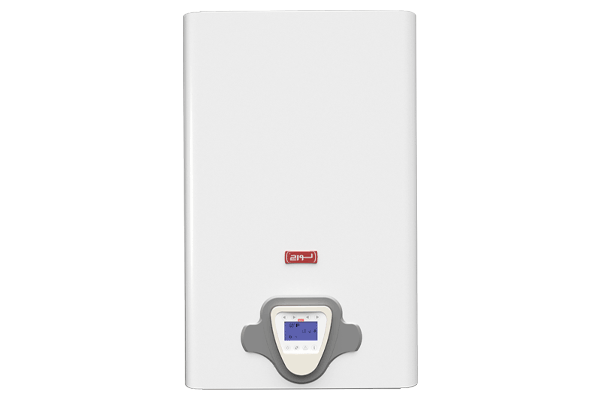

ADENA Lorch wall hung boiler is produced in capacities of 24000, 28000 and 32000 kcal. All capacities of ADENA Lorch wall hung boiler have two heat exchangers. Adena model has a digital display that is also equipped with an automatic troubleshooting system. Expansion source in a capacity of 24,000, a 6-liter number, and in a capacity of 28,000 and 32,000, two 6-liter expansion source (a total of 12 liters) that are installed vertically on the sides of the package
| Detailed description | Unit of measurement | Capacity 24,000 kcal | Capacity 28,000 kcal | Capacity 32,000 kcal |
|---|---|---|---|---|
| Maximum nominal power | KW | 25.2 | 31 | 33.8 |
| Maximum thermal power | KW | 23.5 | 28.8 | 31.3 |
| Maximum water heating circuit temperature | °C | 85 | 85 | 85 |
| Maximum water circuit temperature of hot water circuit | °C | 60 | 60 | 60 |
| Minimum water pressure setup | bar | 0.3 | 0.3 | 0.3 |
| Maximum pump height | m.w.c | 5 | 6 | 6.5 |
| Expansion source capacity | lit | 6 | 12 | 12 |
| The size of the input connections and Heating system output | inch | 3/4 | 3/4 | 3/4 |
| The size of the input connections and Sanitary water outlet | inch | 1/2 | 1/2 | 1/2 |
| Size of gas connections | inch | 3/4 | 3/4 | 3/4 |
| Chimney diameter | mm | 60/100 80/80 | 60/100 80/80 | 60/100 80/80 |
| Weight | kg | 27 | 36 | 36 |
| Height | mm | 456 | 456 | 456 |
| Height | mm | 690 | 690 | 690 |
| Depth | mm | 240 | 332 | 332 |
